Strain to Stress 3D - Comprehensive Guide

1. Introduction

This tool performs the inverse problem of converting three-dimensional strain measurements to their corresponding stress states for isotropic materials. Engineers frequently measure strains using strain gauges or extensometers, and need to calculate the actual stresses present in the material. This strain-to-stress conversion requires knowledge of the material's elastic properties and application of generalized Hooke's law in its stiffness form.

The tool accepts strain measurements in microstrain (με), which is the standard unit for engineering strain measurements (1 με = 10-6 strain), and calculates the complete 3D stress state along with all relevant stress and strain measures used in engineering analysis.

2. Strain Tensor Representation

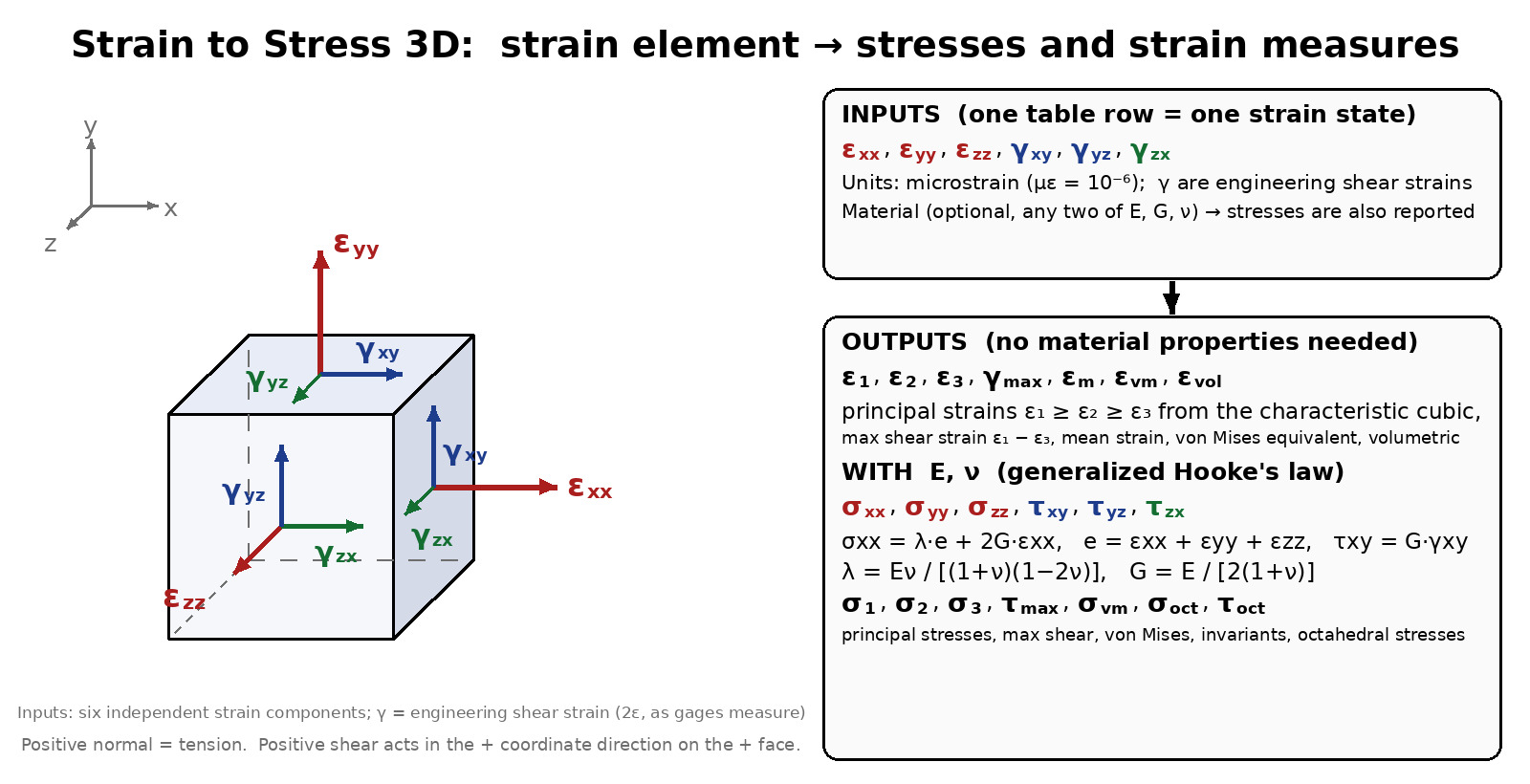

The three-dimensional strain state at a point is completely described by a symmetric second-order tensor with six independent components:

Strain Tensor:
[ε] =
  | εxx  εxy  εxz |
  | εxy  εyy  εyz |
  | εxz  εyz  εzz |

Normal Strains: εxx, εyy, εzz represent the fractional change in length along the x, y, and z directions, respectively.

Tensor Shear Strains: εxy, εyz, εzx represent half the change in angle between initially perpendicular lines.

Engineering Shear Strains: The relationship between tensor shear strains and engineering shear strains (what strain gauges measure) is:

γxy = 2εxy
γyz = 2εyz
γzx = 2εzx

This tool accepts engineering shear strains (γij) as inputs, as these are the values directly measured by strain gauges.

3. Material Properties for Isotropic Materials

An isotropic material has identical mechanical properties in all directions. For linear elastic isotropic materials, the relationship between stress and strain is characterized by only two independent elastic constants. Commonly used constants include:

  • E = Elastic modulus (Young's modulus) - relates normal stress to normal strain
  • G = Shear modulus - relates shear stress to shear strain
  • ν = Poisson's ratio - relates lateral strain to axial strain

Fundamental Relationship: For isotropic materials, these three constants are related by:

G = E / [2(1 + ν)]

This means that specifying any two of the three constants fully defines the material's elastic behavior. This tool allows flexible input:

  • Provide E and ν → Tool calculates G
  • Provide E and G → Tool calculates ν
  • Provide all three → Tool validates compatibility (1% tolerance)

4. Three-Dimensional Hooke's Law (Stiffness Form)

The generalized Hooke's law relates strains to stresses for linearly elastic isotropic materials. For strain-to-stress conversion, we use the stiffness form of the constitutive equations:

Normal Stresses:
σxx = E / [(1+ν)(1-2ν)] · [(1-ν)εxx + ν(εyy + εzz)]
σyy = E / [(1+ν)(1-2ν)] · [(1-ν)εyy + ν(εxx + εzz)]
σzz = E / [(1+ν)(1-2ν)] · [(1-ν)εzz + ν(εxx + εyy)]

Shear Stresses:
τxy = G · γxy
τyz = G · γyz
τzx = G · γzx

Note that shear stresses are simply proportional to engineering shear strains through the shear modulus G.

5. Lamé Parameters

The stiffness form of Hooke's law is often expressed more compactly using Lamé's constants, which are alternative elastic parameters for isotropic materials:

Lamé's First Parameter (λ):
λ = Eν / [(1+ν)(1-2ν)]

Lamé's Second Parameter (μ):
μ = G = E / [2(1+ν)]

Note that Lamé's second parameter μ is identical to the shear modulus G.

Physical Interpretation:

  • λ governs volumetric deformation (resistance to change in volume)
  • μ governs distortional deformation (resistance to change in shape)

Using Lamé parameters, the constitutive equations become:

Compact Form:
σij = λεvolδij + 2μεij

Where:
εvol = εxx + εyy + εzz (volumetric strain)
δij = Kronecker delta (1 if i=j, 0 otherwise)

This elegant form clearly separates the volumetric and deviatoric (shape-changing) contributions to stress.

6. Strain-to-Stress Constitutive Relations (Detailed)

Expanding the Lamé form for each stress component:

Normal Stresses (using Lamé parameters):
σxx = λ(εxx + εyy + εzz) + 2μεxx
σyy = λ(εxx + εyy + εzz) + 2μεyy
σzz = λ(εxx + εyy + εzz) + 2μεzz

Shear Stresses:
τxy = 2μεxy = μγxy = Gγxy
τyz = 2μεyz = μγyz = Gγyz
τzx = 2μεzx = μγzx = Gγzx

Key Observations:

  • Normal stresses depend on all three normal strains (Poisson effect)
  • Shear stresses depend only on their corresponding shear strains (no coupling)
  • Normal and shear responses are decoupled for isotropic materials

7. Strain Invariants and Principal Strains

Like the stress tensor, the strain tensor has three invariants that remain unchanged under coordinate transformations:

Strain Invariants:
J1 = εxx + εyy + εzz

J2 = εxxεyy + εyyεzz + εzzεxx - εxy2 - εyz2 - εzx2

J3 = εxxεyyεzz + 2εxyεyzεzx - εxxεyz2 - εyyεzx2 - εzzεxy2

Principal Strains: The eigenvalues of the strain tensor (ε1, ε2, ε3) represent the maximum, intermediate, and minimum normal strains, respectively. They occur on mutually perpendicular planes where shear strains vanish.

Principal strains are found by solving the characteristic equation:

λ3 - J1λ2 + J2λ - J3 = 0

This tool uses Cardano's method with trigonometric solution for numerically stable computation of principal strains.

Other Strain Measures:

  • Volumetric Strain: εvol = εxx + εyy + εzz = J1 (fractional volume change)
  • Maximum Shear Strain: γmax = ε1 - ε3
  • Von Mises Equivalent Strain: εvm = (√2/3) · √[(ε1-ε2)2 + (ε2-ε3)2 + (ε3-ε1)2]

8. Stress Calculations and Analysis

After converting strains to stresses using Hooke's law, the tool performs comprehensive stress analysis:

Stress Invariants (I1, I2, I3): Calculated from stress tensor components, analogous to strain invariants.

Principal Stresses (σ1, σ2, σ3): Eigenvalues of the stress tensor, found by solving:

λ3 - I1λ2 + I2λ - I3 = 0

Von Mises Stress: Equivalent stress used in yield criteria:

σvm = √{[(σ1-σ2)2 + (σ2-σ3)2 + (σ3-σ1)2] / 2}

Octahedral Stresses:

  • Octahedral Normal Stress: σoct = (σ1 + σ2 + σ3) / 3 = σm
  • Octahedral Shear Stress: τoct = (1/3)√[(σ1-σ2)2 + (σ2-σ3)2 + (σ3-σ1)2]

Maximum Shear Stress: τmax = (σ1 - σ3) / 2

9. Applications

When to Use Strain-to-Stress Conversion:

  • Experimental Stress Analysis: When strains are measured using strain gauges, extensometers, or Digital Image Correlation (DIC), and actual stresses need to be determined
  • Structural Health Monitoring: Converting measured strain data from sensors into stress levels for safety assessment
  • Material Testing: Deriving stress states from strain measurements during mechanical testing
  • Finite Element Validation: Comparing experimental strain measurements with FEA predictions by converting both to stress
  • Failure Analysis: Determining if measured strains correspond to stress levels that approach material yield or ultimate strength
  • Residual Stress Measurement: Calculating residual stresses from strain measurements obtained through hole-drilling or other relaxation methods

Practical Considerations:

  • Strain measurements are typically in microstrain (με) and must be converted to dimensionless strain
  • Accurate material properties (E, G, ν) are essential for accurate stress calculations
  • Temperature effects on material properties should be considered for high-temperature applications
  • This analysis assumes linear elastic behavior - results are invalid beyond the elastic limit

10. Sign Conventions

Normal Strains and Stresses:

  • Positive (+): Tension (elongation, expansion)
  • Negative (-): Compression (shortening, contraction)

Shear Strains and Stresses:

  • Positive (+): Shear in the positive coordinate direction
  • Negative (-): Shear in the negative coordinate direction
  • Sign convention follows right-hand rule for coordinate system

Engineering Shear Strain Definition:

γij represents the total change in angle (in radians) between initially perpendicular lines in the i and j directions. This is twice the tensor shear strain: γij = 2εij.

Note on Units: While strains are dimensionless, they are commonly expressed in microstrain (με = 10-6) for practical measurement. This tool accepts microstrain inputs and automatically converts to dimensionless values for calculation.




References

Dally, J. W., & Riley, W. F. (1991). Experimental Stress Analysis (3rd ed.). McGraw-Hill, New York, NY. Chapter 6: Strain-Stress Relations.

Ugural, A. C., & Fenster, S. K. (2020). Advanced Mechanics of Materials and Applied Elasticity (6th ed.). Pearson Education, Upper Saddle River, NJ. Chapters 2 and 4: Stress and Strain; Stress-Strain Relations and Theories of Failure.

Boresi, A. P., Schmidt, R. J., & Sidebottom, O. M. (1993). Advanced Mechanics of Materials (5th ed.). John Wiley & Sons, New York, NY. Chapter 2: Theory of Stress and Strain.
