Elliptic Inclusion in Infinite Plate under General In-plane Load

Stresses in and around an elliptic elastic inclusion (a plug, fiber cross-section or second-phase particle), aligned with the plate axes or inclined, perfectly bonded in an infinite plate under any uniform in-plane far-field state given as Nxx, Nyy, Nxy and the thickness t. Kolosov-Muskhelishvili solution on the conformal map of the ellipse (Hardiman 1954): the stress inside the inclusion is uniform (Eshelby); the matrix potentials are Laurent series solved to machine precision. Rigid inclusion and empty hole (Inglis) are the limits.

  • Infinite plate with a bonded elliptic inclusion (elastic, rigid or empty), aligned or inclined, under Nxx, Nyy, Nxy

  • Uniform stress inside the inclusion; stress components and principal stresses at a user input point in either region

  • Interface stresses: hoop, radial (debonding) and shear extremes, and Kt referred to S1

  • Fringe plots and line plots of the stress field in both regions

Loads, Inclusion and Materials


Unit System: /

Convention

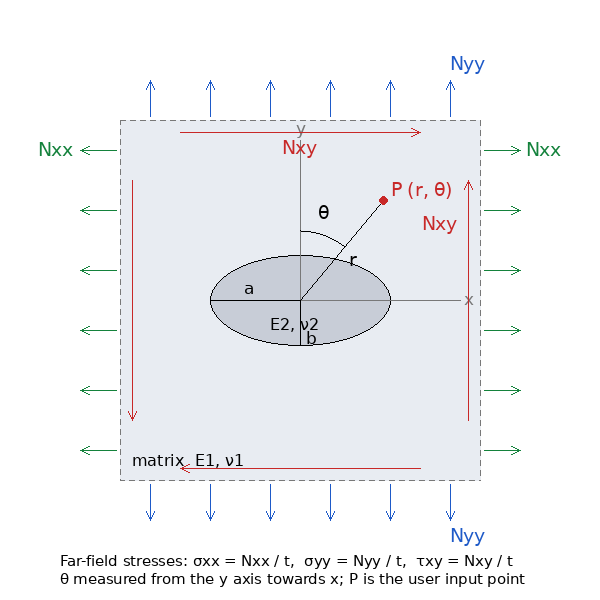

Elliptic inclusion in an infinite plate under N_xx, N_yy, N_xy; semi-axes a and b; point P at (r, theta), theta from the y axis

Far-field Loads and Thickness





Inclusion and Materials










Stress State Location



×

Elliptic Inclusion in Infinite Plate under General In-plane Load

Elliptic Inclusion in an Infinite Plate under General In-plane Load

Problem Statement

A large thin plate (matrix E1, ν1) contains an elliptic inclusion with semi-axes a and b, its a axis inclined by β from the x axis, made of another material (E2, ν2) and perfectly bonded. The plate carries the uniform far-field state Nxx, Nyy, Nxy over the thickness t. Wanted are the uniform stress inside the inclusion, the stress at a point in either region, and the interface stresses governing matrix cracking, debonding and slip. The rigid inclusion and the empty (Inglis) hole are the limits; a = b is the circular inclusion.

Elliptic inclusion under far-field load

Key Assumptions

Infinite plate, linear elastic isotropic materials, perfect bonding, plane stress or plane strain, aspect ratio between 0.2 and 5. No slip, separation, interference or thermal mismatch (an eigenstrain mismatch adds an Eshelby solution that can be superposed). The series solution is truncated to a relative accuracy near 10−8; for aspect ratios beyond 5 the number of terms grows and the tool declines the input.

Solution

The exterior of the unit circle is mapped onto the matrix by z = ω(ζ) = R(ζ + m/ζ), R = (a + b)/2, m = (a − b)/(a + b), as in the elliptic-hole tools. By Eshelby's theorem the stress inside the inclusion is uniform, so its potentials are φ2 = Dz, ψ2 = Fz. The matrix potentials are φ1(ζ) = ΓRζ + Σαkζ−k and ψ1(ζ) = Γ′Rζ + Σβkζ−k, where Γ = (σxx∞ + σyy∞)/4 and Γ′ = [(σyy∞ − σxx∞) + 2iτxy∞]/2 in the inclusion's frame. Unlike the circle, for which only ζ−1 and ζ−3 appear, the mapping's poles at ζ = ±√m make these series infinite, with terms decaying like |m|k (Hardiman gives them in closed form through the mapping). The tool keeps as many terms as needed for |m|k < 10−9 and determines all coefficients, with D and F, from the continuity of traction, φ + zφ̄′ + ψ̄, and of displacement, (κφ − zφ̄′ − ψ̄)/2μ, imposed at four points per term around the interface and solved in the least-squares sense; the collocation residual is reported and is at rounding level. The stresses follow from σxx + σyy = 4 Re Φ, σyy − σxx + 2iτxy = 2[z̄Φ′ + ψ′]/ω′.

Checks built into the development: a = b reproduces the circular-inclusion solution to 14 digits; E2 = 0 reproduces the Inglis hole (error 6×10−6 ksi on 750 ksi at a/b = 2, 4×10−9 at a/b = 4, converging geometrically with the number of terms); matched materials give the far field everywhere; for an elastic inclusion the interface normal and shear stresses and both displacement components are continuous across the bond while the tangential stress jumps; for a rigid inclusion the matrix displacement on the interface vanishes.

Interface Stresses and Concentration Factors

As for the circular inclusion the tool scans the interface on the matrix side and reports the tangential (hoop), normal (debonding) and shear extremes with the polar angle of each point, referred to the maximum far-field principal stress S1: Khoop, Krad and KI = σmax,inclusion/S1. A stiff inclusion elongated across the load attracts load like a short fiber and raises the debonding stress at its ends; a soft one elongated across the load approaches the elliptic hole, whose matrix factor is 1 + 2a/b.

Limits

  • Imperfect bonding and eigenstrains (thermal or transformation mismatch) are not included.
  • Aspect ratios beyond 5 (fibers, platelets) need many terms; the slender limit is the crack or the rigid line inclusion.
  • Finite width and yielding: as for the hole tools.



References

Hardiman, N. J. (1954). "Elliptic Elastic Inclusion in an Infinite Elastic Plate". Quarterly Journal of Mechanics and Applied Mathematics, Vol. 7, No. 2, pp. 226–230. The bonded elliptic inclusion under uniform remote stress by complex potentials on the conformal map of the ellipse: uniform interior stress and the matrix field; the solution this tool evaluates.

Eshelby, J. D. (1957). "The Determination of the Elastic Field of an Ellipsoidal Inclusion, and Related Problems". Proceedings of the Royal Society A, Vol. 241, pp. 376–396. The general result that the stress inside an ellipsoidal (here elliptic-cylindrical) inhomogeneity under a uniform remote field is uniform.

Muskhelishvili, N. I. (1953). Some Basic Problems of the Mathematical Theory of Elasticity, 3rd ed., translated by J. R. M. Radok. P. Noordhoff, Groningen. The complex-potential formulation, the bonded-interface conditions and the conformal mapping of the ellipse.

Inglis, C. E. (1913). "Stresses in a Plate Due to the Presence of Cracks and Sharp Corners". Transactions of the Institution of Naval Architects, Vol. 55, pp. 219–241. The empty-hole limit of this problem (scan filed in the site's References folder); the tool reproduces it with the inclusion modulus set to zero.

Goodier, J. N. (1933). "Concentration of Stress Around Spherical and Cylindrical Inclusions and Flaws". Transactions of the ASME, Vol. 55, APM-55-7, pp. 39–44. The circular limit (a = b), which the tool also reproduces.

Mura, T. (1987). Micromechanics of Defects in Solids, 2nd ed. Martinus Nijhoff, Dordrecht. Eshelby tensors for the elliptic cylinder and the inhomogeneity problem in two dimensions, an independent route to the uniform interior stress.
