Round Hole in a Finite-Width Strip under Tension

Stresses around a central round hole in a long strip of finite width W under an axial load P, from Howland's (1930) series solution carried to convergence: the stress components, principal stresses and maximum shear at a user input point, the gross and net stress concentration factors Ktg = σmax / σg and Ktn = σmax / σn (σg = P / (W t), σn = P / ((W − D) t)), the stresses at the hole edge and at the strip edge on the net section, and the stress field.

  • Long strip of width W and thickness t with a central round hole of diameter D under an axial load P

  • Howland's series solution (hole functions plus Fourier-integral edge functions), converged to machine precision

  • Ktg and Ktn, the hoop stress around the hole and the stress at the strip edge; Kirsch limit 3 and Heywood's approximation 2 + (1 − D/W)³ for comparison

  • Stress components and principal stresses at a user input point, fringe plots and line plots of the stress field

Load and Strip Geometry


Unit System: /

Convention

Strip of width W under axial load P with a central round hole of diameter D; point P at (r, theta), theta from the load axis

Load and Thickness



Strip and Hole



Stress State Location



×

Round Hole in a Finite-Width Strip under Tension

Round Hole in a Finite-Width Strip under Tension (Howland's Series)

Problem Statement

A long, thin strip of width W and thickness t has a round hole of diameter D (radius a = D/2) on its center line and carries an axial load P. Far from the hole the stress is uniform, σg = P/(W t), the gross stress; across the hole the ligament of width W − D carries the same load at the mean net-section stress σn = P/((W − D) t). The strip is linear elastic, isotropic, in plane stress and long compared with its width. The questions are the stress at a point P(r, θ), θ measured from the load axis y towards x, the peak hoop stress on the hole and the factors Ktg = σmax/σg and Ktn = σmax/σn.

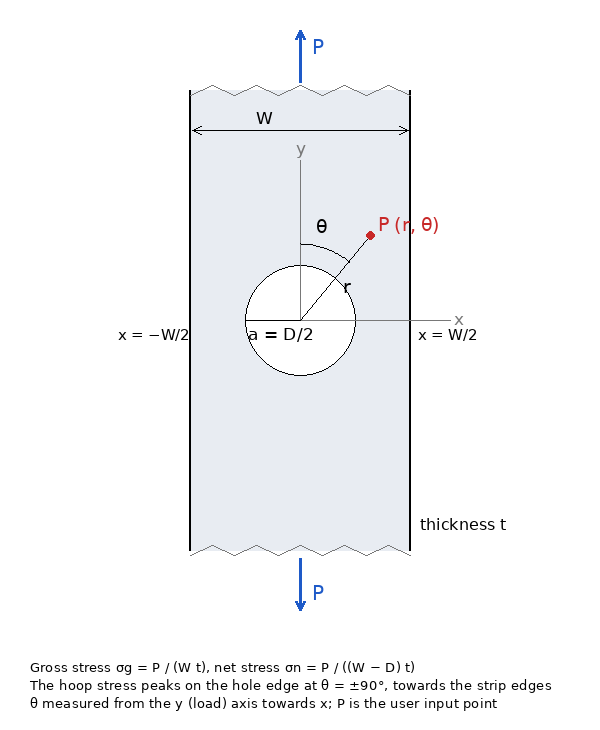

Strip of width W under axial load P with a central hole; P at (r, theta), theta from the load axis

Figure A: Convention. The strip edges are at x = ±W/2, the load acts along y, and θ is measured from the y axis towards x, the same convention as the infinite-plate tools. The hoop stress peaks at θ = ±90°, the points of the hole nearest the strip edges.

Key Assumptions

Infinitely long strip, linear elastic, plane stress, central hole, axial load. The load is a uniform tension far from the hole; the strip edges and the hole are traction-free. Plates of finite length behave like the strip once their length exceeds about twice the width (Deghboudj et al. 2016). The solution does not depend on the elastic constants and is the same in plane strain. The material stays elastic at the peak. The series is carried to convergence for 0 < D/W ≤ 0.9.

Howland's Solution

Kirsch's solution for the infinite plate leaves tractions on the lines x = ±W/2; Howland (1930) removed them with an Airy stress function built from two families. With the handbook axes (tension along the strip axis ξ, edges at η = ±b, b = W/2) the function is

χ = σg η²/2 + ∑j cj [ Fj(r, θ) + Ej(ξ, η) ],

where the hole functions Fj are the Michell functions even in both axes and decaying with distance, ln r, r−2m cos 2mθ and r2−2m sin θ sin(2m − 1)θ, m = 1, 2, … Each has an exact Fourier-integral representation on the edges, e.g.

r−2m cos 2mθ = (−1)m/(2m − 1)! ∫0∞ α2m−1 e−αη cos αξ dα,

so the tractions it leaves on η = ±b are a cosine integral in ξ. The companion edge function

Ej = ∫0∞ [ Cj(α) cosh αη + Dj(α) αη sinh αη ] cos αξ dα

is also biharmonic and even, and its two coefficients are chosen mode by mode so that σηη and τξη vanish on the edges exactly (the denominator sinh 2αb + 2αb appears here). Every pair Fj + Ej therefore satisfies the edge conditions and decays along the strip, and equilibrium is automatic because every edge spectrum vanishes at α = 0. What remains is the traction-free hole: Howland re-expanded the edge functions about the hole in powers of r and solved the resulting infinite linear system for the cj by successive approximation, by hand, for 2a/W up to 0.5.

The tool solves the same system numerically. The α-integrals are evaluated by Gauss–Legendre quadrature (200 nodes on [0, 60/b]; the integrands behave like αk e−2αb), and the 2N + 1 coefficients follow from the conditions σr = τrθ = 0 at 12N + 40 points of the hole edge by least squares, with N = 12 to 24 pairs depending on D/W. The residual traction on the hole is printed on the page; it is 10−13 σg for D/W ≤ 0.5 and 10−8 at 0.9, and the result does not change when the number of terms or quadrature nodes is doubled.

Stress Concentration Factors

The hoop stress on the hole is largest at θ = ±90°, the points nearest the strip edges, and most compressive on the load axis. The tool reports the gross factor Ktg = σmax/σg, which grows without bound as the ligament narrows, and the net factor Ktn = σmax/σn = Ktg(1 − D/W), which falls from the Kirsch value 3 towards 2 as D/W → 1. It also gives the stress at the strip edge on the net section, x = W/2, which is below σn: the ligament stress is highest at the hole and falls towards the free edge, while its integral over the ligament equals the load.

D/WKtg seriesKtn seriesHowland fit (Peterson)Finite element (2016)Heywood Ktn
0.13.0362.7333.0352.981*2.729
0.23.1532.5223.1483.1562.512
0.33.3742.3623.3673.3912.343
0.43.7472.2483.7323.7712.216
0.54.3482.1744.3144.3662.125
0.65.3182.1275.2555.3442.064
0.76.9872.0966.8897.0202.027
0.810.3502.07010.21610.392.008
0.920.4162.04220.23720.52.001

Table 1: Ktg from the converged series against the expression fitted to Howland's table (Pilkey & Pilkey 2008) and the finite element values of Deghboudj et al. (2016, plate length twice the width); Heywood's Ktn = 2 + (1 − D/W)³. The series lies between the two at every ratio: 0 to 1.4 % above the fit to Howland's hand-computed values and 0.1 to 0.6 % below the finite element results. *The finite element value at 0.1 is below the Kirsch limit and reflects the mesh.

Checks

  • As D/W → 0 the series gives Ktg → 3.00 (3.0014 at D/W = 0.02), the Kirsch value, and the hoop stress on the load axis → −σg.
  • The stress σyy integrated across the ligament equals σg W/2 per half strip to 10−6 (equilibrium), and the field returns to the uniform gross stress along the strip as e−2.1 y/b, the Papkovich–Fadle decay rate of a strip.
  • The strip edges are traction-free to 10−16 σg at every point (exact by construction), the hole to the printed residual.

Limitations

  • Central hole only; an eccentric hole or a hole near one edge is a different problem (Isida; Peterson Chart 4.2).
  • D/W ≤ 0.9: for narrower ligaments the hole series converges too slowly (the number of terms is already raised to 24 above 0.8).
  • Two-dimensional plane stress: through-thickness variation of the peak (Sternberg & Sadowsky; Pilkey Chart 4.1 notes) is not represented.
  • The tool draws the stress field within four hole radii or, for wider holes, across the whole strip width; for D/W < 0.29 the strip edges lie outside the window.



References

Howland, R. C. J. (1930). "On the Stresses in the Neighbourhood of a Circular Hole in a Strip under Tension". Philosophical Transactions of the Royal Society of London, Series A, Vol. 229, pp. 49–86. The series solution implemented by the tool: Michell functions for the hole paired with Fourier-integral functions that free the straight edges, the integral representations of r−2m cos 2mθ and the companion functions, and the tabulated factors for 2a/W up to 0.5 (the paper's values were computed by hand with a truncated system and lie up to about 0.8 % below the converged series).

Heywood, R. B. (1952). Designing by Photoelasticity. Chapman & Hall, London. The approximation Ktn = 2 + (1 − D/W)³ to Howland's results, printed by the tool for comparison.

Pilkey, W. D., and Pilkey, D. F. (2008). Peterson's Stress Concentration Factors, 3rd ed. John Wiley & Sons, Hoboken. Chapter 4, "Holes", Chart 4.1: Ktg and Ktn for a circular hole in a finite-width thin element in tension (Howland), with the fitted expression Ktg = 0.284 + 2/(1 − d/H) − 0.600(1 − d/H) + 1.32(1 − d/H)², and the definitions of the gross and net factors.

Timoshenko, S. P., and Goodier, J. N. (1970). Theory of Elasticity, 3rd ed. McGraw-Hill, New York. Chapter 4, article "Effect of circular holes on stress distributions in plates": the Kirsch limit Kt = 3 for the infinite plate and the discussion of Howland's strip results.

Deghboudj, S., Satha, H., and Boukhedena, W. (2016). "Effect of Shape Factor upon Stress Concentration Factor in Isotropic/Orthotropic Plates with Central Hole Subjected to Tension Load". U.P.B. Scientific Bulletin, Series D, Vol. 78, No. 4, pp. 143–154. Finite element values of Ktg and Ktn for d/W = 0.1 to 0.9 compared with the Howland and Heywood expressions; used to check the tool (Table 1: the converged series lies within 0.6 % of the finite element values at every ratio). Copy filed in the site's References folder.

Boresi, A. P., and Schmidt, R. J. (2003). Advanced Mechanics of Materials, 6th ed. John Wiley & Sons. Chapter 14, "Stress Concentrations": gross and net stress concentration factors and the plane-stress transformation to principal stresses used for the user input point.
